About this product
Model:Â zwo_m54-tilter
Part Number:Â M54-TILTER

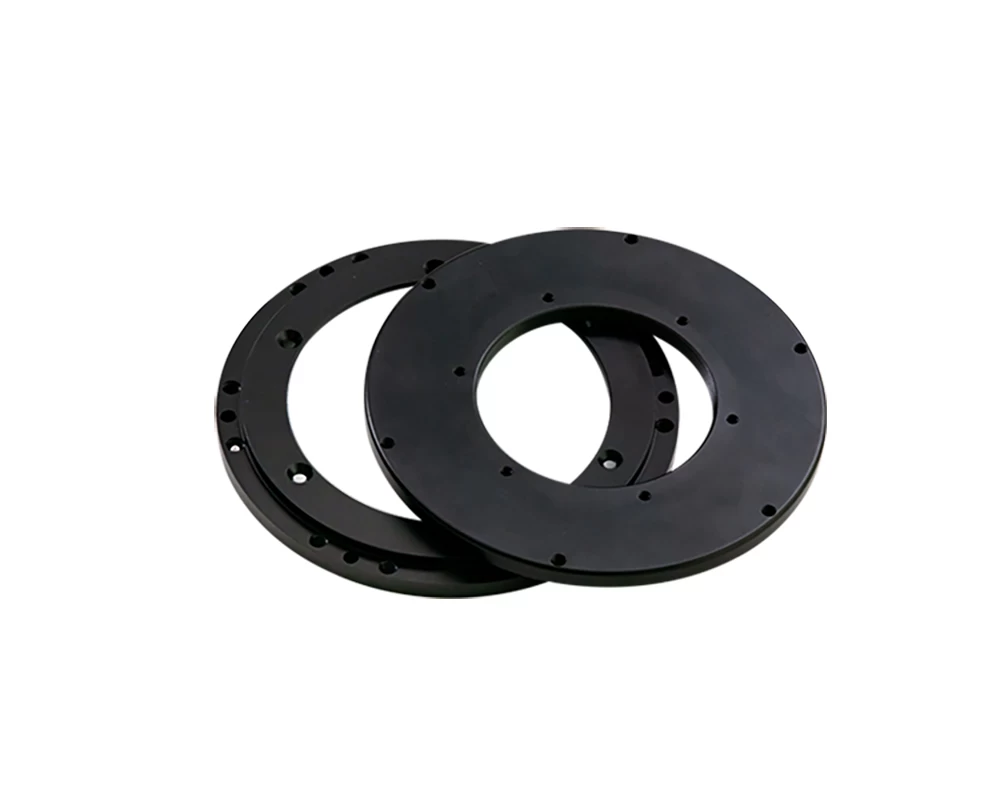

ZWO M54 Tilt Adjuster
Compatible Camera Types: ASI2600 Pro Series/ASI6200 Pro Series/ASI2400MC Pro
The significant advantage of this Tilt Adjuster is that the three rear adjustment points ensure tilt adjustment is much easier than removing the tilt plate from the camera.
Installation steps for the M54-Tilter
1. Remove the M54-Tilter from the packaging box and use an Allen wrench to remove the three cylindrical screws on the top.
2. Remove the original sensor tilt plate from the cooled camera.
3. Place the base of the M54-Tilter onto the cooled camera and fasten it with six Phillips flat-head screws (specification: M2.5*6).
4. Cover the top of the M54-Tilter, turn the camera over, and fasten it with three cylindrical screws from the back.
