About this product
Model:Â coro_sm_ii_bf10_60
Part Number:Â SMT60-10

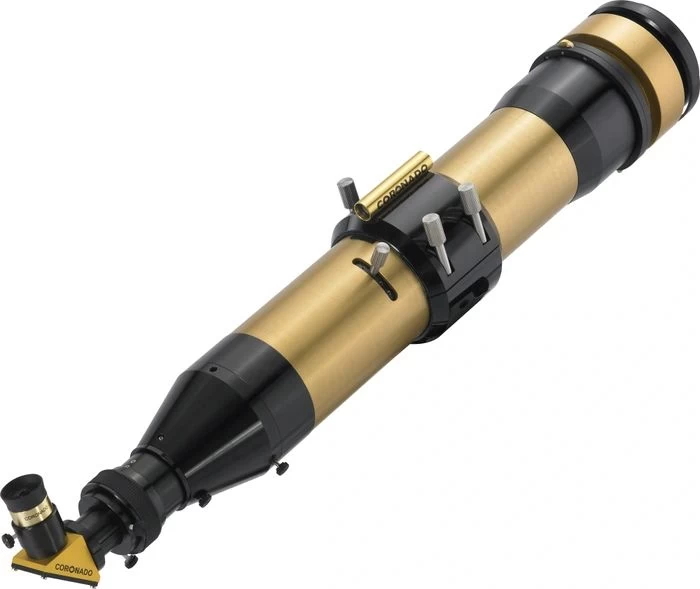

Coronado SolarMax II 60 RichView Solar Telescope w/BF10
The Coronado SolarMax II 60 is designed to do much more than merely show you sunspots, as an ordinary white light solar filter can. The SolarMax II 60 will reveal the ever-changing tapestry of prominences leaping off the edges of the solar disk, the explosive upheavals of flares on the face of the Sun, and the subtle mottling of granulation across the face of this nearest of stars in gorgeous detail. The solar filter has a <0.7 angstrom bandpass, centred on the 6562.8 angstrom H-Alpha line. The sub-angstrom passband width gives you an ideal balance of prominence and surface detail alike. The filter is thermally stable, so the SolarMax II 60 will not drift off the H-Alpha line as the filter heats up during use. The 10mm clear aperture of the blocking filter built into the star diagonal of the SolarMax II 60 is designed to provide full disk views of the Sun for visual use and imaging.
Designed and Manufactured in North America.
The Meade Coronado SolarMax II represents a breakthrough in solar observing with the RichView tuning assembly. This patented system allows direct tuning of the primary filter etalon. You can tune for the highest contrast views of active regions, flares, filaments, and other surface detail, or quickly and easily re-tune for prominences on the solar limb. The stunning bright red views through a Coronado Ha telescope display astounding surface and limb detail especially when the Sun is in an active phase.
This very high quality 60mm Solar Telescope acts as a personal solar observatory featuring a 400mm focal length and f/6.6 focal with a 10mm blocking filter with sub 0.7 angstrom bandwidth filtering. Includes mounting rings with ¼-20 tapped holes, Cemax 25mm eyepiece, Sol Ranger solar finder and carry case. Weight is 6 pounds. Dovetail rail, mount, and tripod required (sold separately).
Coronado assures that all solar filters and solar telescopes are tested at specialised labs that are accredited to verify compliance with the ISO 12312-2 safety specifications for solar viewing.
Warning:
Please note this product was not designed or intended by the manufacturer for use by a child 12 years of age or younger.
FEATURES
- Fully integrated 60mmÂ
- f/6.6 H-alpha telescope – 400mm focal length
- 10mm blocking filter
- Sol Ranger Viewfinder
- RichView tuning system
- <0.7Ã… Bandpass
- Five-year manufacturers warranty
Specifications
| Optical Design | Refractor |
| Optical Diameter | 60mm |
| Focal Length | 400mm |
| Focal Ratio | F/6.6 |
| Coatings | Fully Multi-Coated |
| Eyepieces | Cemax 25.0mm |
| Mag with Inc Eyepieces | 16x |
| Resolving Power | 1.9arc*sec |
| Lowest Useful Magnification | 9x |
| Highest Useful Magnification | 120x |
| Optical Quality | Diffraction Limited |
| Finderscope | Sol Ranger |
| Diagonal Degrees | 1.25″ 90° Blocking Filter BF10 |
| T-Max Tuner | No |
| Additional Accessories | |
| Other features | <0.7 angstrom |
| Mount Tube | No Mount |
| Warranty | 5 Years |
